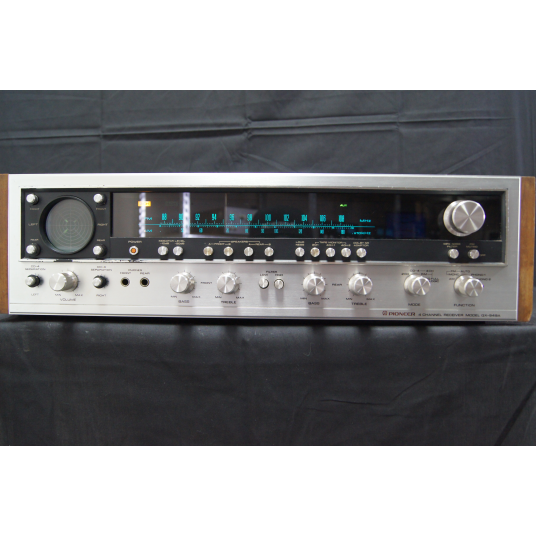

Pioneer QX-949A

Description

The Pioneer QX-949A is a 40 watt, four channel, stereo receiver.

Features include a CD-4 demodulator, SQ decoder, regular matrix decoder, four channel level indicator, power boosting circuit, high and low cut filters and two tape monitor switches.

Specifications

Tuning range: FM, MW

Power output: 60W/ch (stereo), 40W/ch into 8Ω (quadraphonic)

Frequency response: 7Hz to 25kHz

Total harmonic distortion: 0.3%

Damping factor: 35

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 12 x FET, 11 x IC, 85 x transistors, 63 x diodes

Dimensions: 550 x 160 x 440mm

Weight: 22.4kg

Accessories: FM T-type antenna, PQX-1014 CD-4 test record

Year: 1976

• Service Completed: May 2023

• Performance: All Tests Passed
